• 17" x 6.0" steel wheels -inc: bright wheel skins (N/A w/AR9 Single Rear Wheel Group)
• LT235/80R17E all-season BSW tires (N/A w/AR9 Single Rear Wheel Group)
• Dual rear wheels
• Center wheel hubs
• 17" steel spare wheel
• Full-size spare tire
• Winch-type spare tire carrier
• Bright front bumper
• Bright rear bumper
• Front air dam
• Bright/bright grille
• Body-color headlamp filler panel
• Auto headlamps
• Quad headlamps
• Fog lamps
• Underhood lamp
• Cab clearance lamps
• Box & rear fender lamps
• Cargo lamp
• Black pwr trailer tow mirrors -inc: supplemental signals, courtesy lamps, heated glass
• Tinted glass windows
• Pwr sliding rear window
• Variable-speed intermittent windshield wipers
• Front license plate bracket
• Locking tailgate
• Body-color/chrome door handles

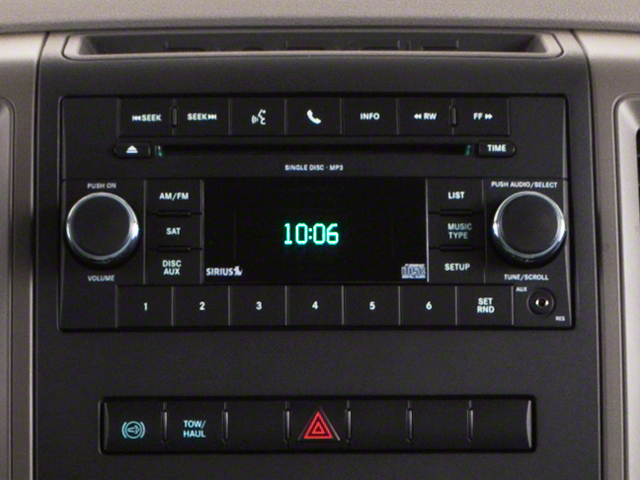

• Uconnect 130 -inc: AM/FM stereo w/CD/MP3 player
• Audio input jack
• SIRIUS satellite radio -inc: 1-year service *N/A in AK or HI*
• (6) speakers
• Fixed long mast antenna

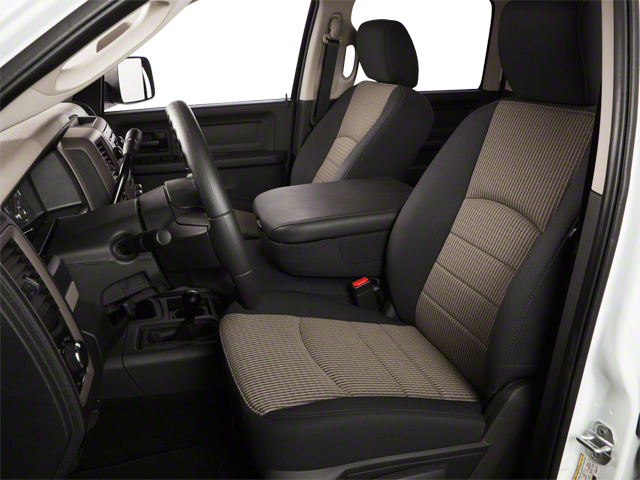

• Cloth 40/20/40 premium split-bench seat
• 10-way pwr driver seat
• Driver pwr lumbar adjuster

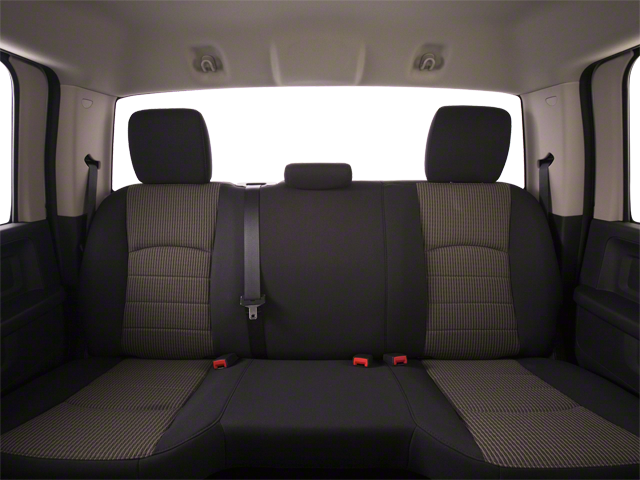

• Rear 60/40 split-folding bench seat
• Carpeted floor covering
• Front/rear floor mats
• Front center seat cushion storage
• Mini floor console

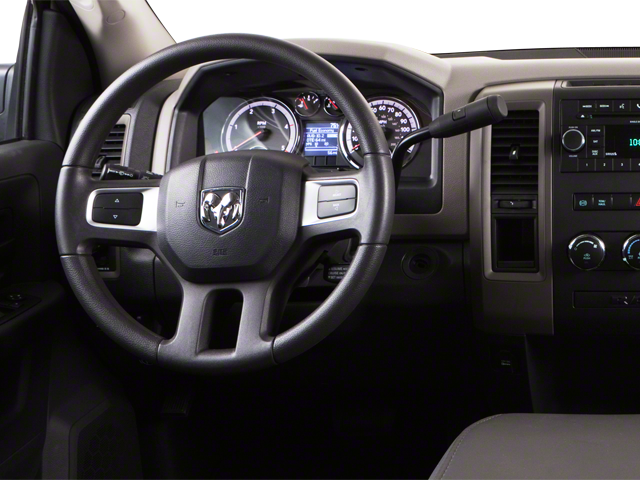

• Leather-wrapped steering wheel
• Steering wheel audio controls
• Tilt steering column
• Sentry Key theft-deterrent system
• Instrument cluster w/display screen
• Vehicle info center
• 120-MPH primary speedometer
• Traveler/mini trip computer
• Outside temp gauge & compass

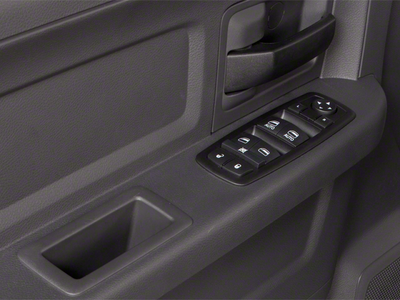

• Pwr windows w/front one-touch up/down
• Pwr accessory delay
• Pwr locks
• Remote keyless entry
• Speed control
• Air conditioning
• 12V auxiliary pwr outlet
• 115V auxiliary pwr outlet
• Premium vinyl door trim panel w/map pockets
• Auto-dimming rearview mirror
• Overhead console w/universal garage door opener
• Driver/passenger assist handles
• Dual illuminated visor vanity mirrors
• Rear dome lamp w/on/off switch
• LED interior lighting
• Chrome accent shift knob
• Color-keyed instrument panel bezel
• Rear underseat compartment storage
• 2nd row in-floor storage bins

• Advanced multistage front airbags
• Supplemental side airbags
• Supplemental front seat side airbags
• Child safety door locks
• Front/rear side curtain airbags
• Front height-adjustable shoulder belts
• Dual-note horn

2FZ BIG HORN CUSTOMER PREFERRED ORDER SELECTION PKG

• 6.7L I6 turbo-diesel engine
• 6-speed auto trans
• bright/bright grille
• fog lamps
• cloth 40/20/40 premium split-bench seat
• 10-way pwr driver seat w/pwr lumbar
• front center seat cushion storage
• 60/40 split folding rear seat
• underhood lamp
• leather-wrapped steering wheel w/audio controls
• 115V aux pwr outlet
• Bighorn badge

LUXURY GROUP

• glove box lamp
• auto-dimming rearview mirror
• dual illuminated visor vanity mirrors
• underhood lamp
• rear dome lamp w/on/off switch
• leather-wrapped steering wheel w/audio controls
• overhead console w/universal garage door opener

PROTECTION GROUP

• transfer case skid plate shield

2EZ BIG HORN CUSTOMER PREFERRED ORDER SELECTION PKG

• 6.7L I6 turbo-diesel engine
• 6-speed manual trans
• bright/bright grille
• fog lamps
• cloth 40/20/40 premium split-bench seat
• 10-way pwr driver seat w/pwr lumbar
• front center seat cushion storage
• 60/40 split folding rear seat
• underhood lamp
• leather-wrapped steering wheel w/audio controls
• 115V aux pwr outlet
• Bighorn badge

6-SPEED AUTOMATIC TRANSMISSION W/OD

• 3.73 axle ratio
• trans oil cooler
• remote start system
• tip start

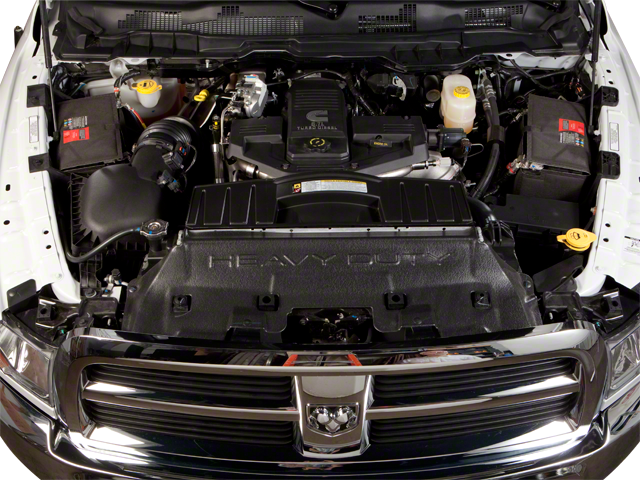

6.7L I6 CUMMINS TURBO-DIESEL ENGINE

• (STD)

17" X 6.0" STEEL WHEELS

• bright wheel skins (STD)

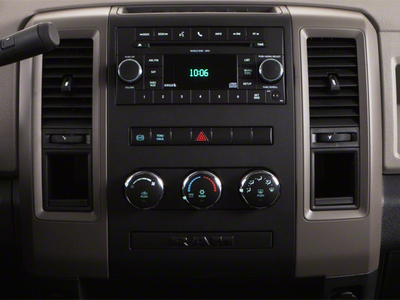

UCONNECT 130

• AM/FM stereo w/CD/MP3 player (STD)

LT235/80R17E ALL-SEASON BSW TIRES

• (STD)

DARK SLATE/MEDIUM GRAYSTONE INTERIOR, CLOTH 40/20/40 PREMIUM SPLIT-BENCH SEAT

• driver pwr lumbar
• front center seat cushion storage
• rear 60/40 split-folding bench seat *w/DG7 trans storage tray*

DUAL REAR WHEELS

• (STD)

• 115V Auxiliary Power Outlet
• 12,300 lbs GVWR
• 40/20/40 Split Bench Seat
• Bright Silver Metallic CC
• Front Center Seat Cushion Storage
• General Brand Tires
• LT235/80R17E BSW AS Tires
• Med Greystone/Dk Slate
• Power 10-Way Driver Seat
• Power Lumbar Adjust
• Rear 60/40 Split Folding Seat
• Uconnect 130 AM/FM/CD/MP3 Radio
• 17' X 6' Steel Wheels
• 6-Speed Automatic Transmission
• 6.7L I6 Cummins Turbo Diesel Engine
• Luxury Group
• Overhead Console with UGDO
• Protection Group
• Quick Order Package 2EZ Big Horn
• Quick Order Package 2FZ Big Horn
• 12V power outlets 3 12V power outlets
• 17' X 6' Steel Wheels
• 3-point seatbelt Rear seat center 3-point seatbelt
• 3.73 Rear Axle Ratio
• 4-Wheel Disc Brakes
• 4WD type Part-time 4WD
• 6 Speakers
• ABS brakes
• ABS Brakes 4-wheel antilock (ABS) brakes
• ABS Brakes Three channel ABS brakes
• Accessory power Retained accessory power
• Air Conditioning
• Air conditioning Yes
• All-in-one key All-in-one remote fob and ignition key
• Alternator Type Alternator
• AM/FM radio: SIRIUS
• Antenna Fixed audio antenna
• Armrests front center Front seat center armrest
• Armrests front storage Front seat armrest storage
• Armrests rear Rear seat center armrest
• Auto door locks Auto-locking doors
• Auto headlights Auto on/off headlight control
• Auto-Dimming Rear-View Mirror
• Aux input jack Auxiliary input jack
• Basic warranty 36 month/36,000 miles
• Battery run down protection
• Battery type Lead acid battery
• Beverage holders Front beverage holders
• Beverage holders rear Rear beverage holders
• Big Horn Regional Package
• Bighorn Badge
• Body accent Exterior badging
• Body panels Fully galvanized steel body panels with side impact beams
• Box style Standard style pickup box
• Brake type 4-wheel disc brakes
• Bright/Bright Grille
• Bumpers front Chrome front bumper
• Bumpers rear Chrome rear bumper
• Bumpers: chrome
• Cab mounted cargo light
• CD location CD player located in the dashboard/instrument panel
• CD player
• CD Single-disc CD player
• CD-R compatible
• Center Hub
• Child door locks Manual rear child safety door locks
• Clearance lights Cab clearance lights
• Climate control Manual climate control
• Clock Digital clock
• Cloth 40/20/40 Bench Seat
• Compass
• Compressor Intercooled turbo
• Concealed cargo storage Cargo area concealed storage
• Convex spotter Driver and passenger convex spotter mirrors
• Corrosion perforation warranty 60 month/100,000 miles
• Cruise control Cruise control with steering wheel mounted controls
• Cylinder head material Iron cylinder head
• Day/Night rearview mirror
• Delay off headlights Delay-off headlights
• Delay-off headlights
• Deluxe sound insulation
• Door ajar warning
• Door bins front Driver and passenger door bins
• Door bins rear Rear door bins
• Door handle material Chrome door handles
• Door locks Power door locks with 2 stage unlocking
• Door mirror style Black door mirrors
• Door mirror type Manual extendable trailer mirrors
• Door mirrors Power door mirrors
• Door trim insert Vinyl door trim insert
• Drive type Four-wheel drive
• Driver door bin
• Driver information center
• Driver lumbar Driver seat with 2-way power lumbar
• Driver seat direction Driver seat with 8-way directional controls
• Dual front impact airbags
• Dual front side impact airbags
• Dual rear wheels
• Emissions LEV II emissions
• Engine block material Iron engine block
• Engine compartment light
• Engine Configuration Cummins I6
• Engine Cummins 6.7L I-6 diesel direct injection, intercooled turbo, diesel, engine with 350HP
• Engine hour meter
• Engine Location Front mounted engine
• Engine Mounting direction Longitudinal mounted engine
• Engine retarder Engine retarder system
• Engine Short Cummins 6.7L I-6
• Engine temperature warning
• Engine/electric motor temperature gauge
• First-row windows Power first-row windows
• Floor coverage Full floor coverage
• Floor covering Full carpet floor covering
• Floor mats Carpet front and rear floor mats
• Fog Lamps
• Fog lights Front fog lights
• Folding door mirrors Manual folding door mirrors
• Folding Flat Load Floor Storage
• Folding rear seats 60-40 folding rear seats
• Front anti-roll bar
• Front anti-roll Front anti-roll bar
• Front beverage holders

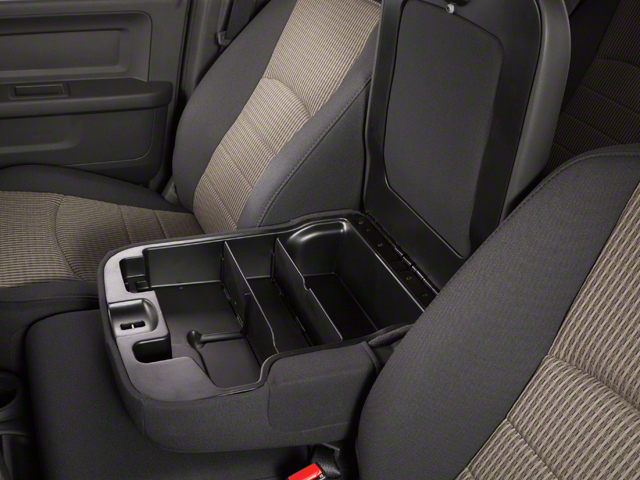

• Front Center Armrest w/Storage
• Front head restraint control Manual front seat head restraint control
• Front head restraints Height adjustable front seat head restraints
• Front impact airbag driver Driver front impact airbag
• Front impact airbag passenger Passenger front impact airbag
• Front reading lights
• Front seat type Split-bench front seat
• Front seat upholstery Premium cloth front seat upholstery
• Front seatback upholstery Cloth front seatback upholstery
• Front side impact airbag driver Seat mounted side impact driver airbag
• Front side impact airbag passenger Seat mounted side impact front passenger airbag
• Fuel Type Diesel
• Fully automatic headlights
• Garage door opener
• Gearshifter material Urethane gear shifter material

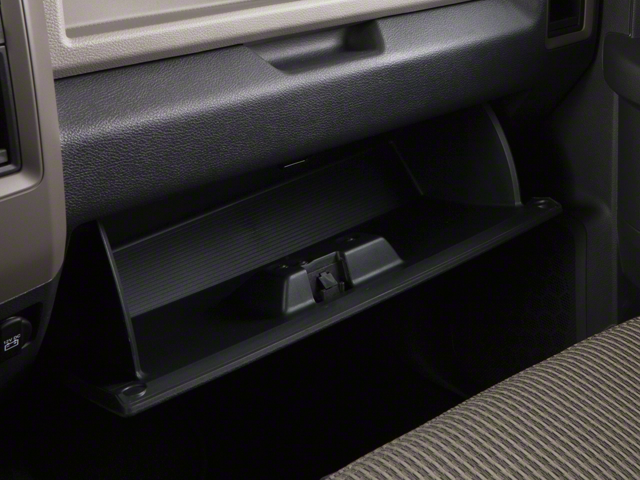

• Glove box Illuminated glove box
• Glove Box Lamp
• Grille style Chrome grille
• Headlight type Reflector headlights
• Headlights Halogen headlights
• Headlights on reminder
• Headliner coverage Full headliner coverage
• Headliner material Cloth headliner material
• Heated door mirrors
• Heated door mirrors Heated driver and passenger side door mirrors
• Height adjustable seatbelts Front height adjustable seatbelts
• High mount stop light High mounted center stop light
• Ignition Compression ignition system
• Ignition type Mechanical
• Illuminated entry
• Illuminated glove box
• Immobilizer Sentry Key immobilizer
• Instrumentation display Analog instrumentation display
• Interior 120V AC power outlets 1 interior 120V AC power outlet
• Interior accents Chrome and metal-look interior accents
• Interior courtesy lights Fade interior courtesy lights
• Key in vehicle warning
• Keyfob keyless entry
• Keyfob remote start
• Leather Wrapped Steering Wheel
• License plate front bracket Front license plate bracket
• Limited slip differential Mechanical limited slip differential
• Lock-up transmission
• Locking hub control Auto locking hub control
• Low level warnings Low level warning for fuel, washer fluid and brake fluid
• Manual passenger seat controls Passenger seat manual reclining and fore/aft control
• Multiple headlights Multiple enclosed headlights
• Number of airbags 6 airbags
• Number of doors 4 doors
• Occupancy sensor Airbag occupancy sensor
• Occupant sensing airbag
• Oil pressure gauge
• Oil temperature gauge
• One-touch down window Driver and passenger one-touch down windows
• One-touch up window Driver and passenger one-touch up windows
• Outside temperature display
• Overdrive transmission
• Overhead airbag
• Overhead airbags Curtain first and second-row overhead airbags
• Overhead console
• Overhead console Mini overhead console
• Overhead Console w/UGDO
• Paint Metallic paint
• Panel insert Metal-look instrument panel insert
• Panic alarm
• Passenger door bin
• Passenger doors rear left Conventional left rear passenger door
• Passenger doors rear right Conventional right rear passenger door
• Passenger seat direction Front passenger seat with 4-way directional controls
• Passenger vanity mirror
• Perimeter approach lighting Remote activated perimeter approach lighting
• Power door mirrors
• Power driver seat controls Driver seat power reclining, lumbar support, cushion tilt, fore/aft control and height adjustable control
• Power steering
• Power windows
• Powertrain type ICE
• Powertrain warranty 60 month/100,000 miles
• Premium Cloth 40/20/40 Front Bench Seat
• Radiator
• Radio AM/FM/SIRIUSsatellite
• Radio data system
• Radio: Uconnect 130 AM/FM/CD/MP3
• RDS Radio data system (RDS)
• Rear bumper step
• Rear cargo door Tailgate
• Rear console climate control ducts
• Rear Dome w/On/Off Switch Lamp
• Rear head restraint control 3 rear seat head restraints
• Rear head restraint control Manual rear seat head restraint control
• Rear head restraints Height adjustable rear seat head restraints
• Rear seat center armrest
• Rear seat direction Front facing rear seat
• Rear seat folding position Fold-up rear seat cushion
• Rear seat upholstery Premium cloth rear seat upholstery
• Rear seatback upholstery Carpet rear seatback upholstery
• Rear seats fixed or removable Fixed rear seats
• Rear seats Split-bench rear seat
• Rear Springs Heavy-duty rear springs
• Rear step bumper
• Rear under seat ducts Rear under seat climate control ducts
• Rear windshield Power rear windshield
• Rearview mirror Auto-dimming rear view mirror
• Remote keyless entry
• Remote panic alarm
• Remote Start System
• Roadside warranty 36 month/36,000 miles
• Seatback storage pockets 2 seatback storage pockets
• Seatbelt pretensioners Front seatbelt pretensioners
• Seatbelt pretensioners number 2 seatbelt pre-tensioners
• Seating capacity 6
• Second-row windows Power second-row windows
• Seek scan
• Selectable mode transmission
• Service interval warning Service interval indicator
• Shock absorbers Heavy-duty gas-pressurized shock absorbers
• Skid plate 1 underbody skid plate
• Spare tire Full-size spare tire with steel wheel
• Spare tire location Crank-down spare tire
• Speakers number 6 speakers
• Speakers Standard grade speakers
• Special paint Monotone paint
• Speed control
• Split front seats 40-20-40 split-bench front seat
• Springs front Front coil springs
• Springs rear Rear leaf springs
• Steering cooler
• Steering Hydraulic power-assist steering system
• Steering mounted audio control Steering wheel mounted audio controls
• Steering type Re-circulating ball steering
• Steering wheel material Leather steering wheel
• Steering Wheel Mounted Audio Controls
• Steering wheel tilt Manual tilting steering wheel
• Sun Visors w/Illuminated Vanity Mirrors
• Suspension ride type front Rigid axle front suspension
• Suspension ride type rear Rigid axle rear suspension
• Suspension Standard ride suspension
• Suspension type front Multi-link front suspension
• Suspension type rear Leaf spring rear suspension
• Tachometer
• Tailgate control Manual tailgate/rear door lock
• Tailpipe Stainless steel single exhaust
• Temperature display Exterior temperature display
• Tilt steering wheel
• Tinted windows Deep tinted windows
• Tires LT235/80SR17 AS BSW 649 RPM front and rear tires
• Tow hooks front 2 front tow hooks
• Towing brake controller Trailer brake controller
• Towing class Class IV tow rating
• Towing hitch Trailer hitch
• Towing wiring harness Trailer wiring harness
• Transfer case Electronic transfer case shift
• Transfer Case Skid Plate Shield
• Transmission 6-speed automatic
• Transmission electronic control
• Transmission fluid temperature warning Transmission fluid temp warning
• Transmission oil cooler
• Transmission Type Automatic
• Trip computer
• Trip odometer
• Turn signal in door mirrors Turn signal indicator in door mirrors
• Turn signal indicator mirrors
• Under seat tray front Front under seat tray
• Under seat tray rear Rear under seat tray
• Underhood Lamp
• Universal Garage Door Opener
• Variable panel light Variable instrument panel light
• Variably intermittent wipers
• Ventilated brakes Front and rear ventilated disc brakes
• Visor driver mirror Driver visor mirror
• Visor illuminated driver mirror Illuminated driver visor mirror
• Visor illuminated passenger mirror Illuminated passenger visor mirror
• Visor passenger mirror Passenger visor mirror
• Voltmeter
• Wheel covers Chrome-clad wheel covers
• Wheels 17 x 6-inch front and dual rear styled steel wheels
• Window Trim Black side window trim
• Windshield trim Black windshield trim
• Wipers Variable intermittent front windshield wipers

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 730
• Maximum Alternator Capacity (amps): 160
• Maximum Alternator Watts: N/A
• Cooling System
• Total Cooling System Capacity (qts): 29.5
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 5500
• Gross Axle Wt Rating - Rear (lbs): 9350
• Curb Weight - Front (lbs): 4651
• Curb Weight - Front (lbs): 4696
• Curb Weight - Rear (lbs): 3153
• Curb Weight - Rear (lbs): 3165
• Gross Vehicle Weight Rating Cap (lbs): 12300
• Gross Combined Wt Rating (lbs): 21000
• Gross Combined Wt Rating (lbs): 21000
• Gross Combined Wt Rating (lbs): 19000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 13050
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 13000
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 11000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1958
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1950
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1650
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): - TBD -
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): - TBD -
• Suspension
• Suspension Type - Front: Live axle
• Suspension Type - Rear: Live axle
• Spring Capacity - Front (lbs): - TBD -
• Spring Capacity - Rear (lbs): - TBD -
• Axle Type - Front: Hypoid
• Axle Type - Rear: Full-floating
• Axle Capacity - Front (lbs): - TBD -
• Axle Capacity - Rear (lbs): 9350
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Front: 3.42
• Axle Ratio (:1) - Rear: 3.73
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): N/A
• Shock Absorber Diameter - Rear (mm): N/A
• Stabilizer Bar Diameter - Front (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 14.17 x 1.54
• Rear Brake Rotor Diam x Thickness (in): 14.09 x 1.34
• Tires
• Front Tire Order Code: TPY
• Rear Tire Order Code: TPY
• Spare Tire Order Code: TBB
• Front Tire Size: LT235/80R17E
• Rear Tire Size: LT235/80R17E
• Spare Tire Size: LT235/80R17E
• Front Tire Capacity (lbs): 3085
• Rear Tire Capacity (lbs): 3085
• Spare Tire Capacity (lbs): 3085
• Revolutions/Mile @ 45 mph - Front: 649
• Revolutions/Mile @ 45 mph - Rear: 649
• Revolutions/Mile @ 45 mph - Spare: 649
• Wheels
• Front Wheel Size (in): 17 x 6.0
• Rear Wheel Size (in): 17 x 6.0
• Spare Wheel Size (in): 17 x 6.0
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Recirculating Ball
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 49.2
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 35.0
• Fuel Tank Location: Inboard Frame Rails
• Exterior Dimensions
• Wheelbase (in): 168.9
• Length, Overall w/o rear bumper (in): 259.4
• Width, Max w/o mirrors (in): 79.1
• Height, Overall (in): 78.3
• Overhang, Front (in): 39.9
• Overhang, Rear w/o bumper (in): 48.7
• Front Bumper to Back of Cab (in): 152.0
• Cab to Axle (in): 56.7
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 36.9
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 8.1
• Ground Clearance, Rear (in): 7.7
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 98.3
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 66.4
• Cargo Box Width @ Wheelhousings (in): 51.0
• Cargo Box (Area) Height (in): 20.2
• Tailgate Width (in): 60.4
• Cargo Volume (ft³): 74.7
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 41.0
• Front Leg Room (in): 41.0
• Front Shoulder Room (in): 66.0
• Front Hip Room (in): 63.2
• Second Head Room (in): 39.9
• Second Leg Room (in): 40.3
• Second Shoulder Room (in): 65.7
• Second Hip Room (in): 63.2
• Summary
• Vehicle Name: Ram 3500
• Body Style: Crew Cab Pickup
